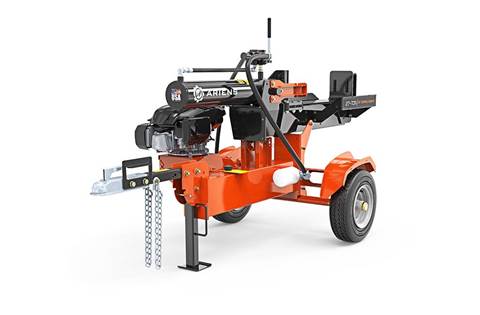

27-Ton Log Splitter Ariens

Horizontal and vertical splitting positions. Durable and easy to use.


They're made to split any logs, anywhere they're piled up. Because they're tough-as-nails log splitters, built with durable steel and cast-iron components meant to be taken deep into the woods. Horizontal and vertical splitting positions, easy to use from either side. 27- and 34-ton available.


Engine Manufacturer: Subaru®

Engine Size: 190cc

Ram Pressure: 27-Ton

Log Capacity: 25 in. (63.5 cm)

Cycle Time: 15

Wheels: 4.8 x 4 x 8 in.

27-Ton Log Splitter

  • Powered by strong, durable 5.5 hp/190cc Subaru engine and built to go anywhere
  • Horizontal and vertical splitting positions with centrally located operator controls
  • Durable components, Tapered wedge design, Professional chassis with standard wheel fenders

27-Ton Log Splitter

  • Model: 917031
  • Engine: Subaru®
  • Horsepower: 5.5 hp
  • Displacement: 190cc
  • Starting System: Recoil
  • Fuel Capacity: 0.26 gal. (1 L)
  • Hydraulic Capacity: 4.5 gal. (17 L)
  • Splitting Force: 27-Ton
  • Cylinder Cycle Time Sec: 15
  • Log Capacity: 25 in. (63.5 cm)
  • Hitch Coupler: 2 in
  • Maximum Towing Speed: 45 mph
  • 2-Stage Hydraulic Pump: 11 gpm
  • Chassis: Professional
  • Horizontal and Vertical Splitting: Standard
  • Open Operating Zone: Standard
  • Centrally Located Controls: Standard
  • Tapered Wedge: Standard
  • Wheel fenders: Standard
  • Safety Chains: Standard
  • Log Cradle: Standard
  • Work Table: Optional
  • Jack Stand With Wheel: Optional
  • Hitch Handle: Standard
  • Wheel (Rear): 4.8 x 4 x 8 in
  • Weight: 525 lb.
  • Length: 86.25 in
  • Width: 38.25 in
  • Height: 46.5 in
  • Warranty: 3-Year Limited Consumer, 90-Day Limited Commercial

Accessories

  • Jack Stand with Wheel Kit: Ariens Jack Stand with wheel support helps support the tongue of the log splitter when uncoupled from the tow vehicle. Side mounted crank with a comfortable grip easily raises and lowers the jack. Fits select Ariens 27-ton Log Splitters.
  • Hydraulic Cylinder Handle: Split larger logs with less lifting. Conveniently switch between vertical and horizontal operation with your Ariens Precision Log Splitter.
  • Trailer Light Mounting Bracket: Use in combination with Ariens 71701300 Log Splitter Tail Light Kit on Ariens 22-Ton Log Splitters.
  • Log Splitter Cover: Keep your log splitter safe from UV damage, rain, dirt, birds, tree sap and more with an Ariens Log Splitter Cover.
  • Torsion Axle Kit: Ariens Log Splitter Torsion Axle Kit improves towing stability and shock absorption on all surfaces, extending the life of the log splitter.
  • License Plate Holder with Light (requires 71701300): The Ariens Log Splitter License plate holder is ideal for mounting a license plate to your log splitter or adding that personalized novelty plate. The License plate holder is designed with durability in mind and includes a light for enhanced visibility.
